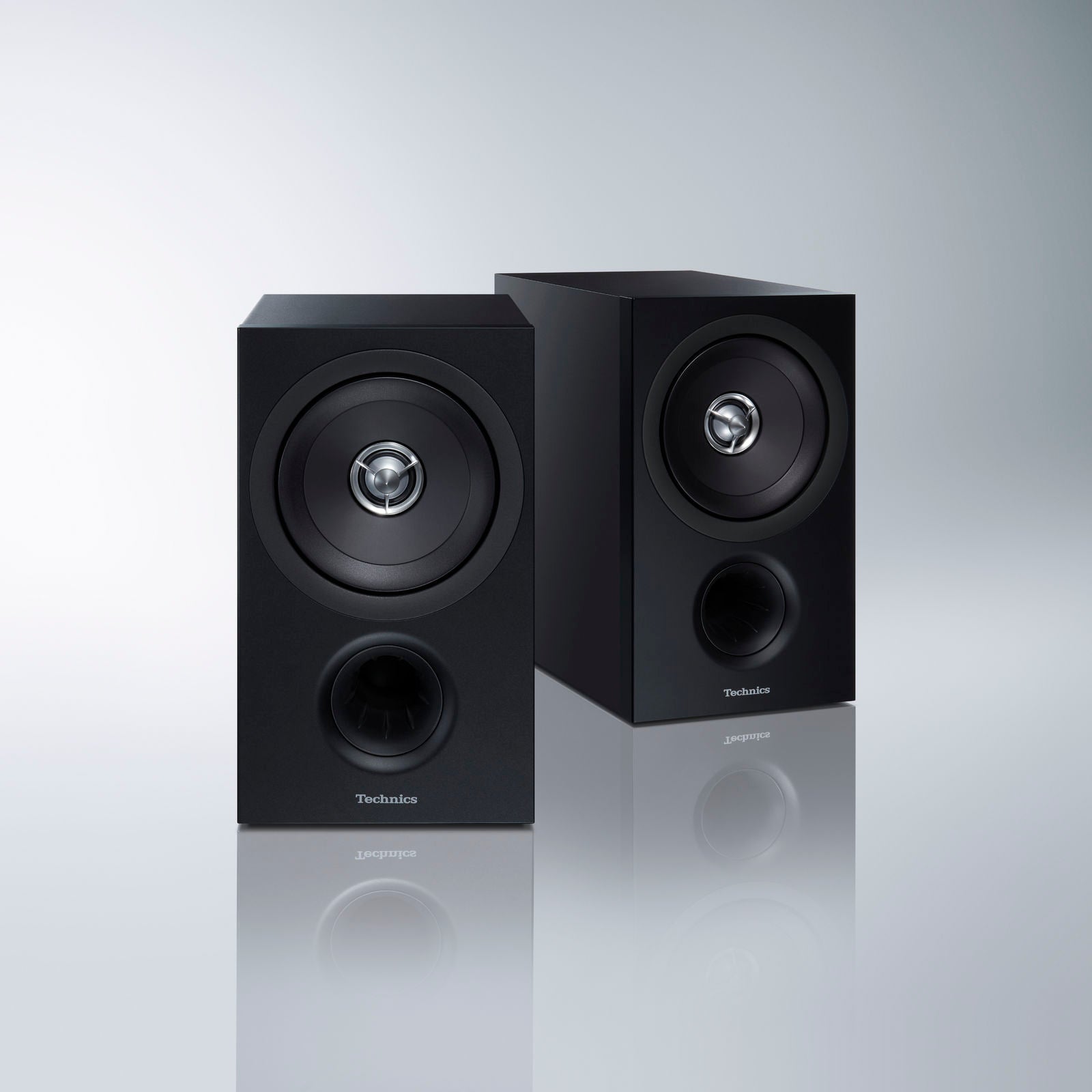

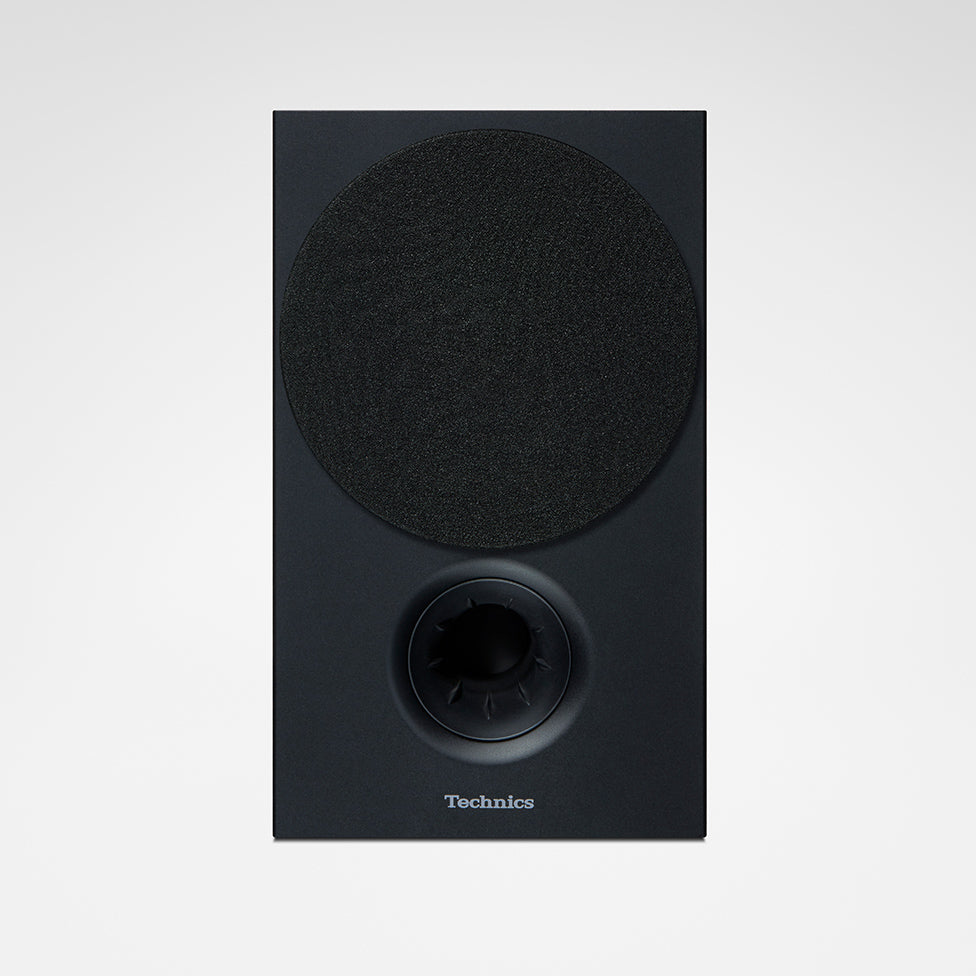

Technics SB-C600 Premium Class 6-inch 2-Way Coaxial Bookshelf Speaker (Pair)
Bookshelf speaker system that realises clear sound image localisation and full-scale sound stage

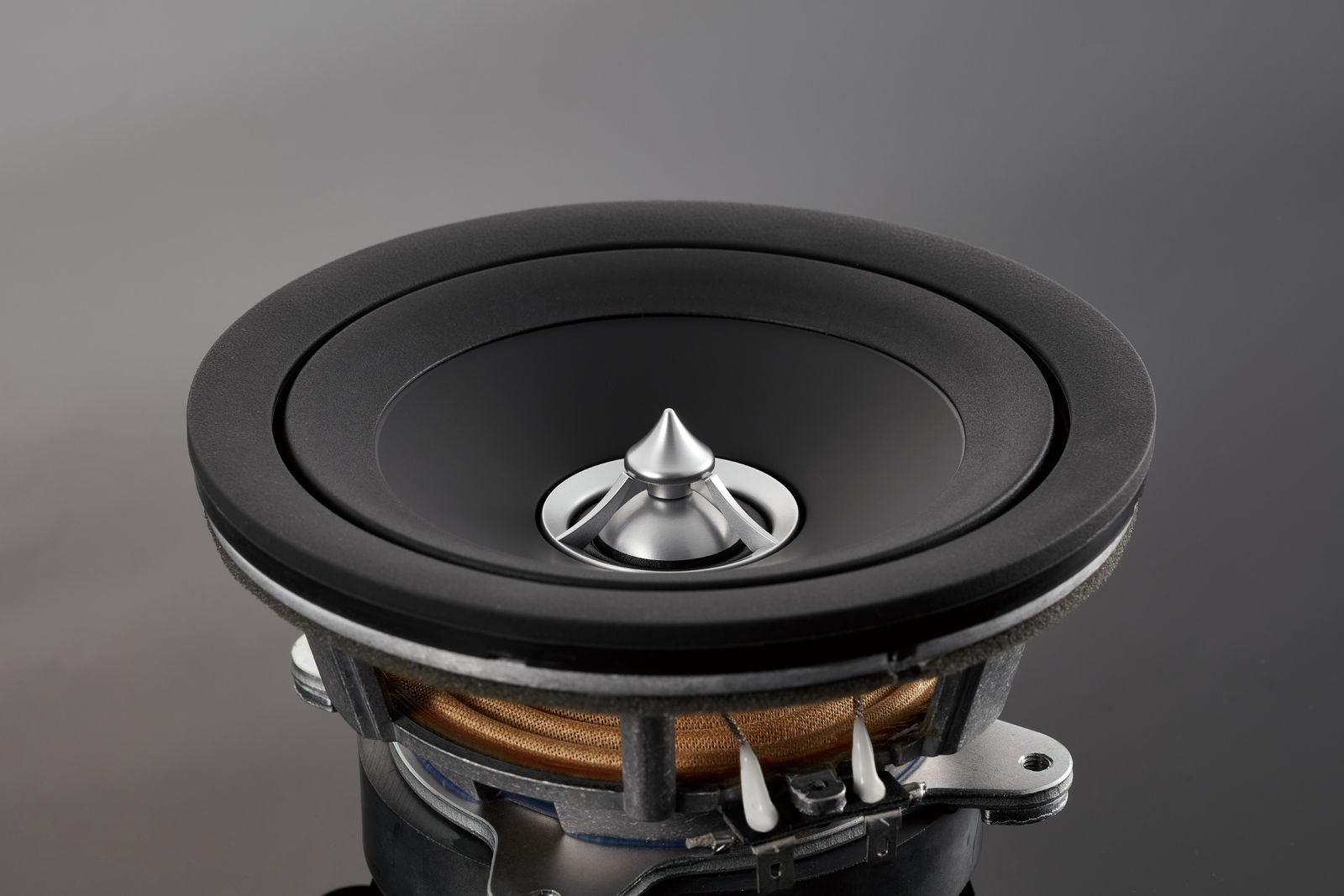

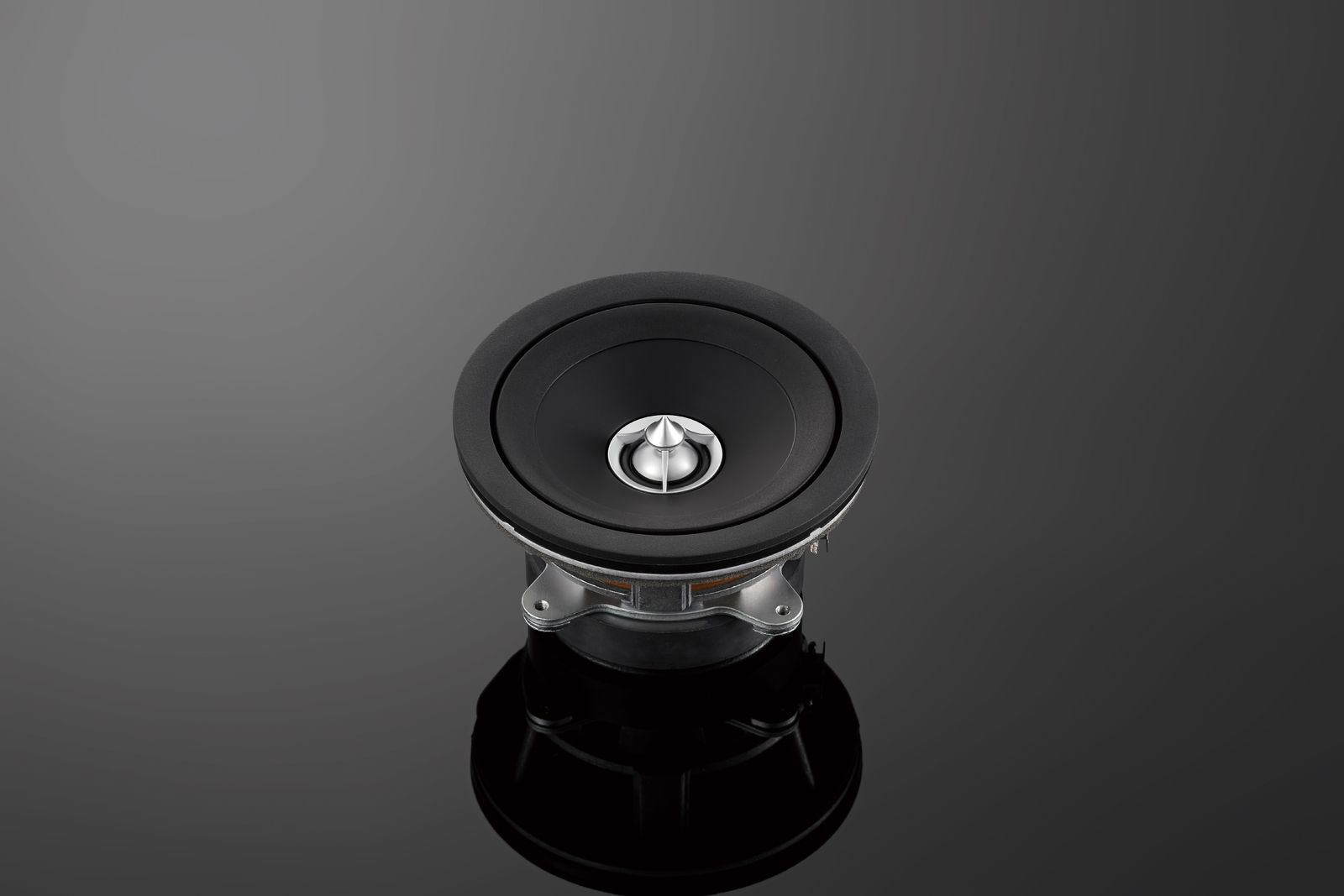

Advanced Phase Precision Driver
To reproduce music with enhanced spatial sound expressivity requires that the wavefronts of sounds radiated from the speaker unit are all aligned regardless of the listening position. The concept of point sound source is one of the ideal approaches to achieve it.
To realise the point sound source reproduction, the coaxial configuration was adopted and then it was combined with the originally shaped Linear Phase Plug for aligning phases and the Smooth Flow Diaphragm formed with a shallow-shape diaphragm and smooth edge shape for minimum sound reflection. The result is a spherical wave with aligned wavefronts of radiated sounds.
The SB-C600’s 2-way coaxial speaker unit realises clear sound image localisation and a smooth, high-quality sound, rich of emotion, while inheriting the concepts of point sound source and linear phase that Technics pursues relentlessly.
Linear Phase Plug
Smooth Flow Diaphragm
Smooth Flow Port
Balanced Driver Mounting Architecture
To realise a calm and low-distortion sound, the SB-C600 employs a speaker mount baffle created by optimising the low-resonance, high-rigidity design concept of the SB-G90M2 using CAE.
The originally shaped speaker mount baffle keeps the concentration of stress in check. The speaker mount baffle secures enough vent holes to ensure smooth flow of sounds radiated from the back sides of the speaker units and improve the response while maintaining low resonance and high rigidity. In addition, this structure reduces the vibrations of the entire enclosure and minimises the effects on other equipment.

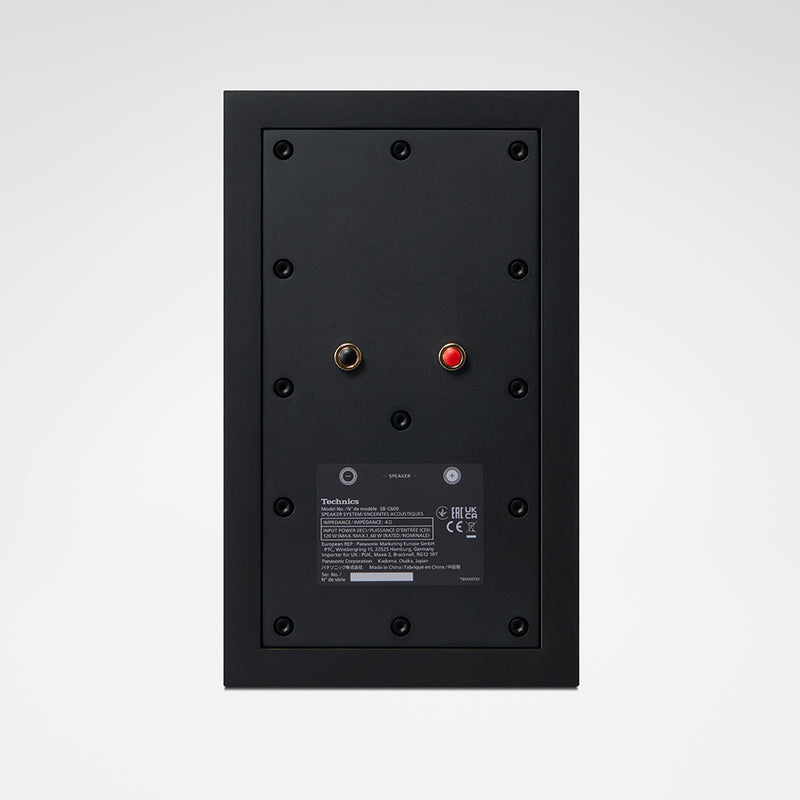

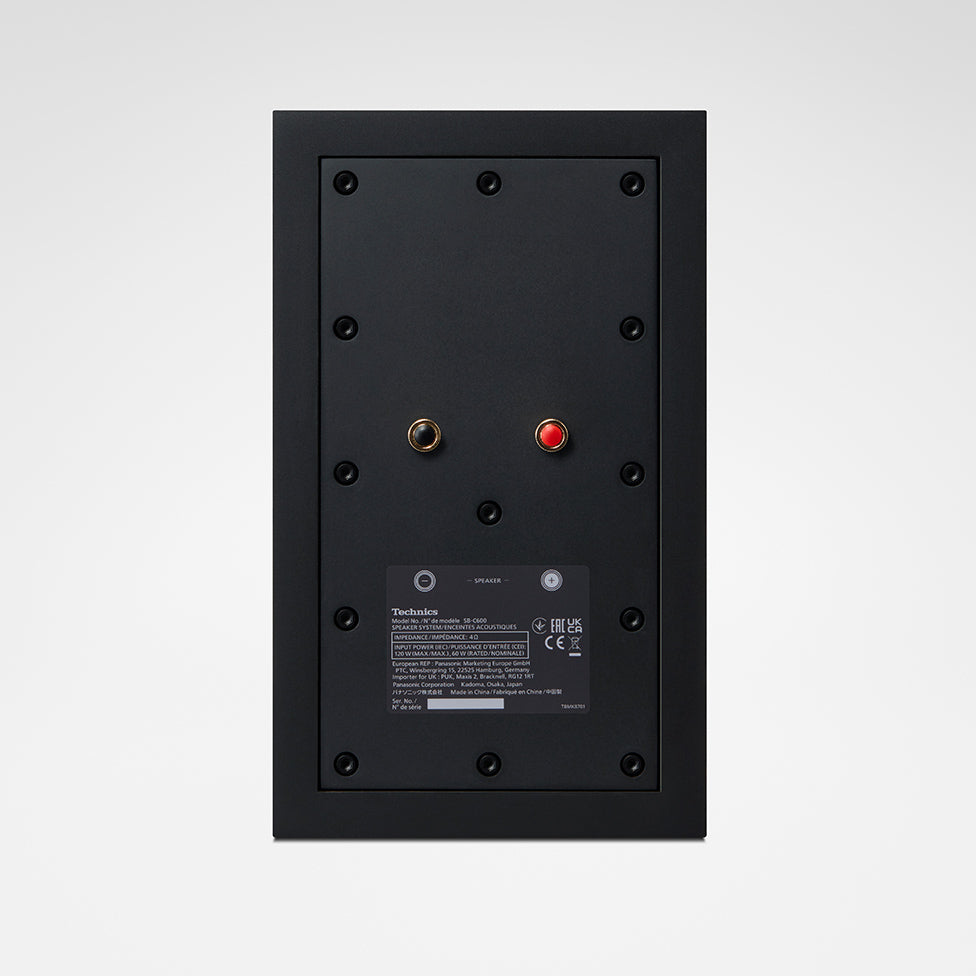

The network circuit uses high-quality parts, such as polypropylene film capacitors, OFC wires and more. The speaker terminals are made of brass.
All Aluminium Diaphragms
The woofer and tweeter diaphragm are made of alumite-treated aluminium material for a unified tonal quality, and provides balanced sound like a full-range unit.
Highly Analysed and Optimised Components
To achieve accurate sound image localisation, structural parts such as spacers and wire grommets were analysed extensively for the elimination of undesirable vibrations and noise.

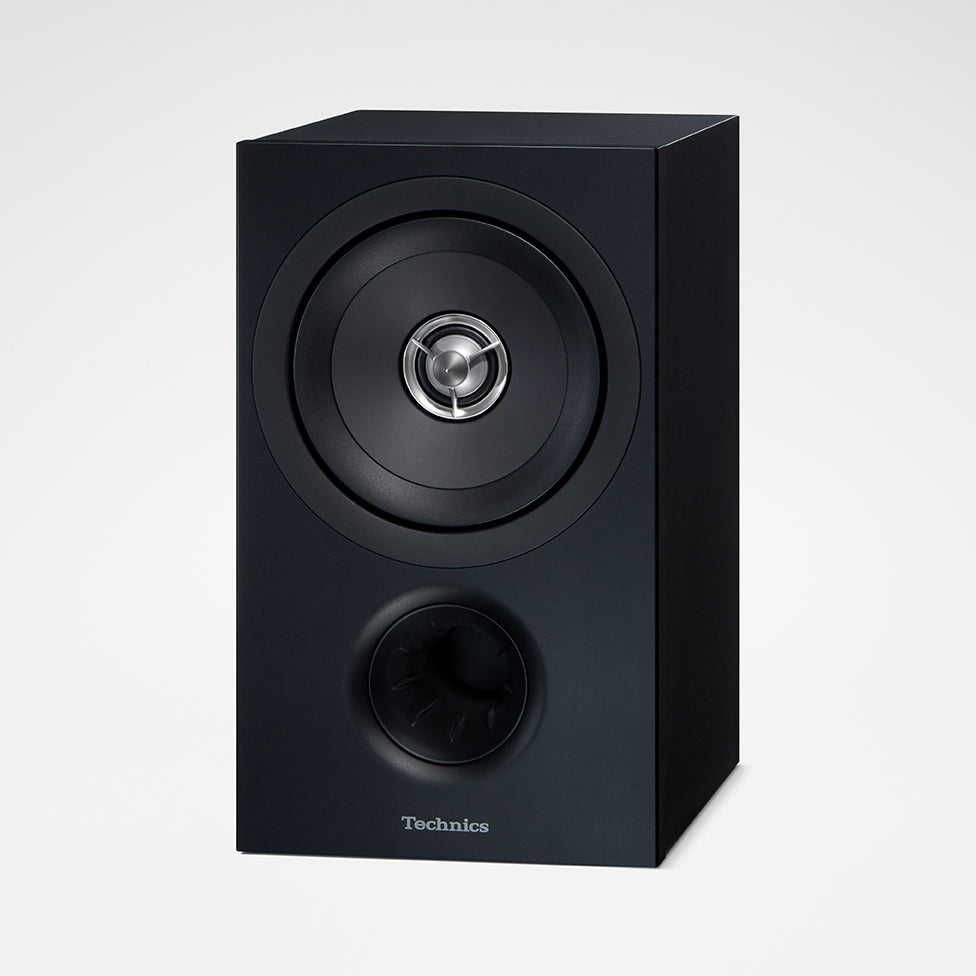

Matte Black Finish
The front baffle of the SB-C600’s enclosure is coated with a matte paint mixed with a powder for a beautiful matte finish.
