TRUSTED BY PROFESSIONALS, ENGINEERED FOR EVERYONE.
Building upon the widely adopted SLX-D platform of transparent, 24- bit digital audio and rock-solid RF performance, SLX-D+ is engineered to add an expanded 138 MHz wide tuning range (region-dependent), plus patented digital feedback reduction DSP and encryption. SLX-D+ wireless systems maintain stable signals from an expanded frequency range of 138MHz – offering compatible channels up to 11 per 6 MHz and 14 per 8 MHz TV bands (Performance may vary depending on country regulations and operating environment)
REMOTE CONTROL AND MONITORING
SLX-D+ features ShowLink® Ease, a dedicated control link between receivers and transmitters that enables remote management and powerful automated features.
WIRELESS EXCELLENCE. WHEREVER REQUIRED.
Offering a wide selection of rack-ready and portable system configurations and microphone options, SLX-D+ Wireless Systems are ready for every stage, theater, or house of worship event.
Wireless Workbench
Wireless Workbench is a free software for audio professionals that puts a full suite of RF spectrum management tools in one place to give you full command of your compatible wireless devices. Guarantee that you are prepared to succeed in any RF environment – no matter the location.
Wireless Workbench helps you set up and manage your networked wireless devices. Quickly perform RF scans and identify & deploy frequencies to your devices in just a few clicks for maximum efficiency. Once the production begins, remotely monitor the RF for every piece of Shure wireless gear to ensure a successful production.
Key Features:
Transparent Digital Sound, Dependable Performance, and More Mics
- The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound.
- Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
- With a low latency of 3.2 ms, the system is ideal for events that require live sound reinforcement.
- The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
- Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.
Ready to Rackmount, Easy to Use
- Housed in a tough, half-rack metal chassis with detachable antennas, the SLXD4 receiver is a great fit for A/V installations or as part of a portable rackmount rig—ready to travel to a meeting or event.
- The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
- Intuitive front-panel controls and a high-contrast LCD screen with audio and RF metres makes set up a snap.
- The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
- The receiver offers up to 60 dB of adjustable gain and the display shows you where the ideal level should be.
Optional Rechargeable Battery Management
- Adding the SB903 lithium-ion rechargeable battery, along with an SBC10-903 single charger or an SBC203 dual-docking charger, offers a cost-effective and environmentally friendly alternative to throwing away AA batteries (battery and chargers available separately).
- Using the SB903 battery and SBC203 charger simplifies the task of keeping multiple transmitters charged and ready—you can even recharge the battery while still in the transmitter.
- When powered by an SB903, the transmitter displays the remaining battery life in hours and minutes.
Enhance the Reliability of Your System
- Adding UA874 active antennas or PA805SWB passive antennas increases the range of your system and offers increased protection against interference.
- The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.
In The Box

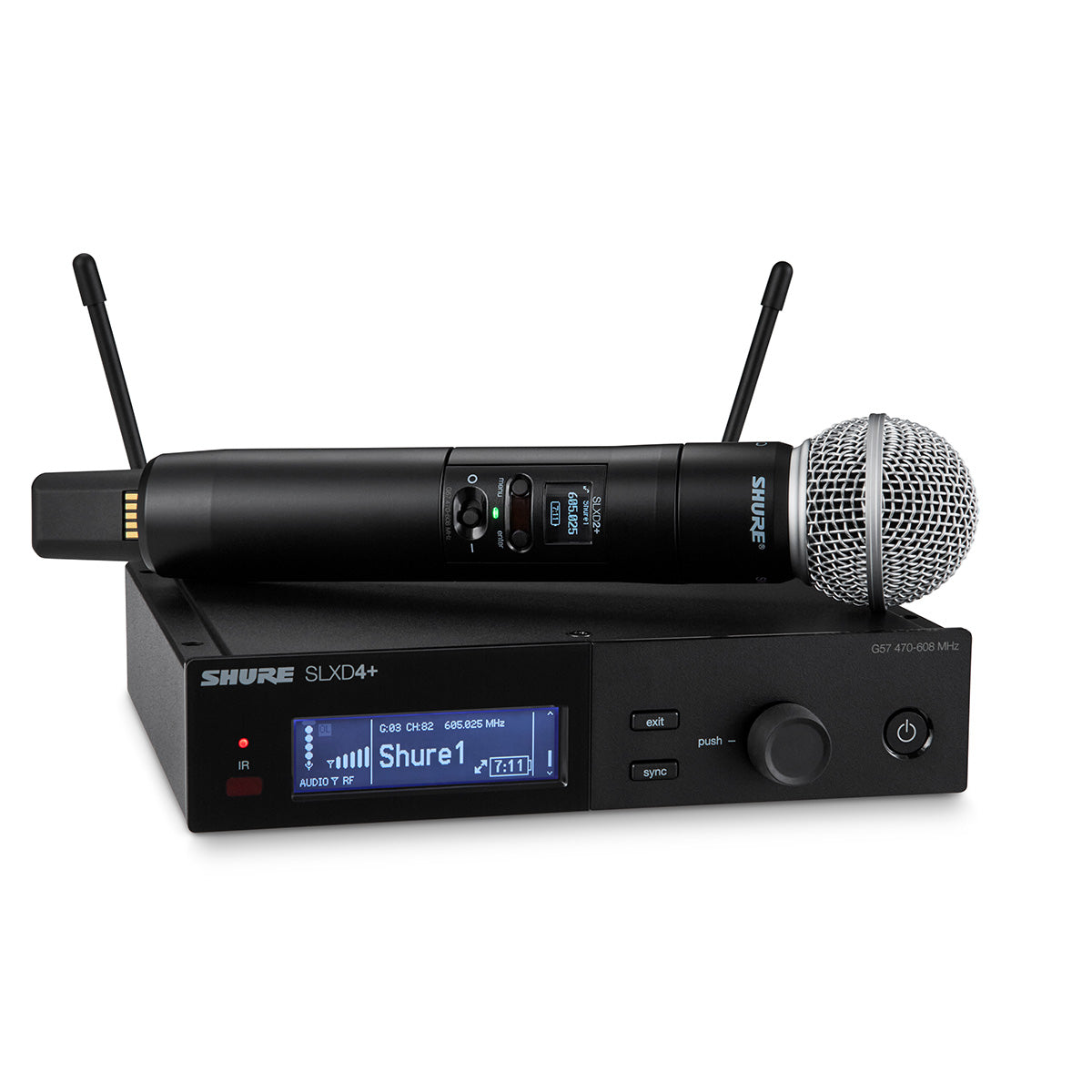

- 1 SLXD4+ Digital Wireless Receiver
- 1 SLXD2+/58 Handheld Transmitter with SM58® Cardioid Dynamic Microphone
- 1 microphone clip
- 2 1/4 wave antennas
- 1 rackmount kit
- 2 AA batteries
- 1 power supply
- 1 carrying pouch
