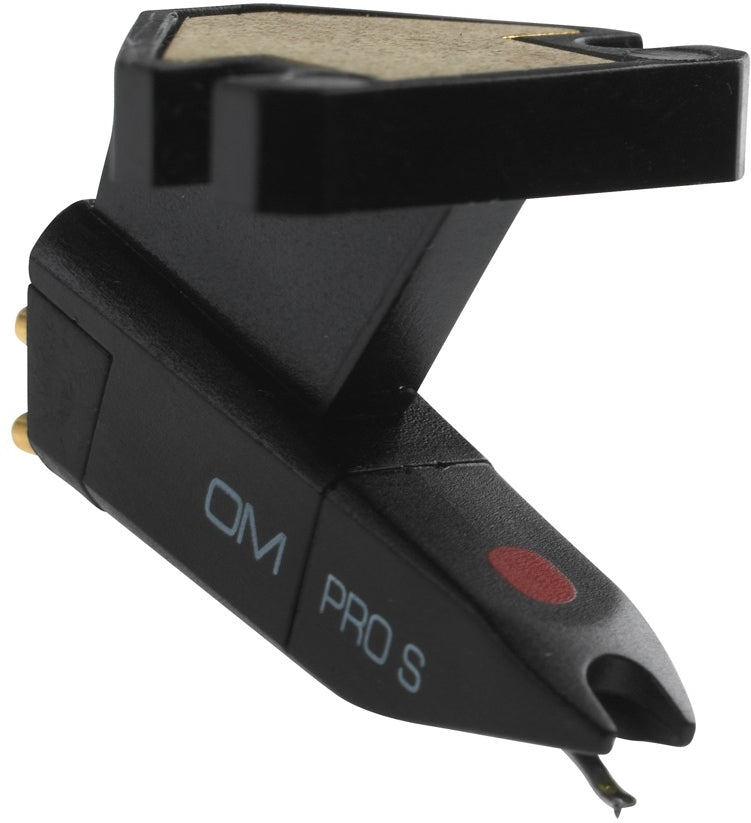

Ortofon OM PRO S Beginner DJ Cartridge

New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent equipment that doesn't break the bank. The Pro S has a spherical diamond stylus which minimises scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

Specifications

• Output voltage at 1000 Hz, 5cm/sec.: 5 mV
• Channel balance at 1 kHz: 2 dB
• Channel separation at 1 kHz: 20 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range: 20-20.000 Hz
• Frequency response: 20-18.000 Hz +3/-2 dB
• Tracking ability at 315Hz at recommended tracking force: 70 µm
• Compliance, dynamic, lateral: 7 µm/mN
• Stylus type: Special Spherical
• Stylus tip radius: 26 µm
• Tracking force range: 3,0-5,0 g (30-50 mN)
• Tracking force, recommended: 3,0 g (30 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Cartridge weight: 18,5 g
• Replacement stylus unit: Pro S

Please note: this product does not include a headshell.
