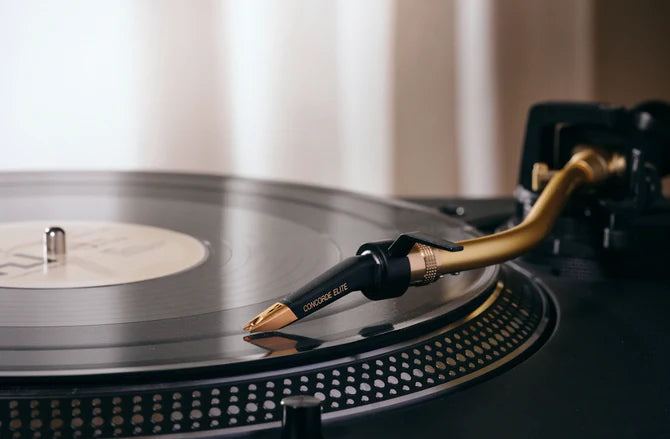

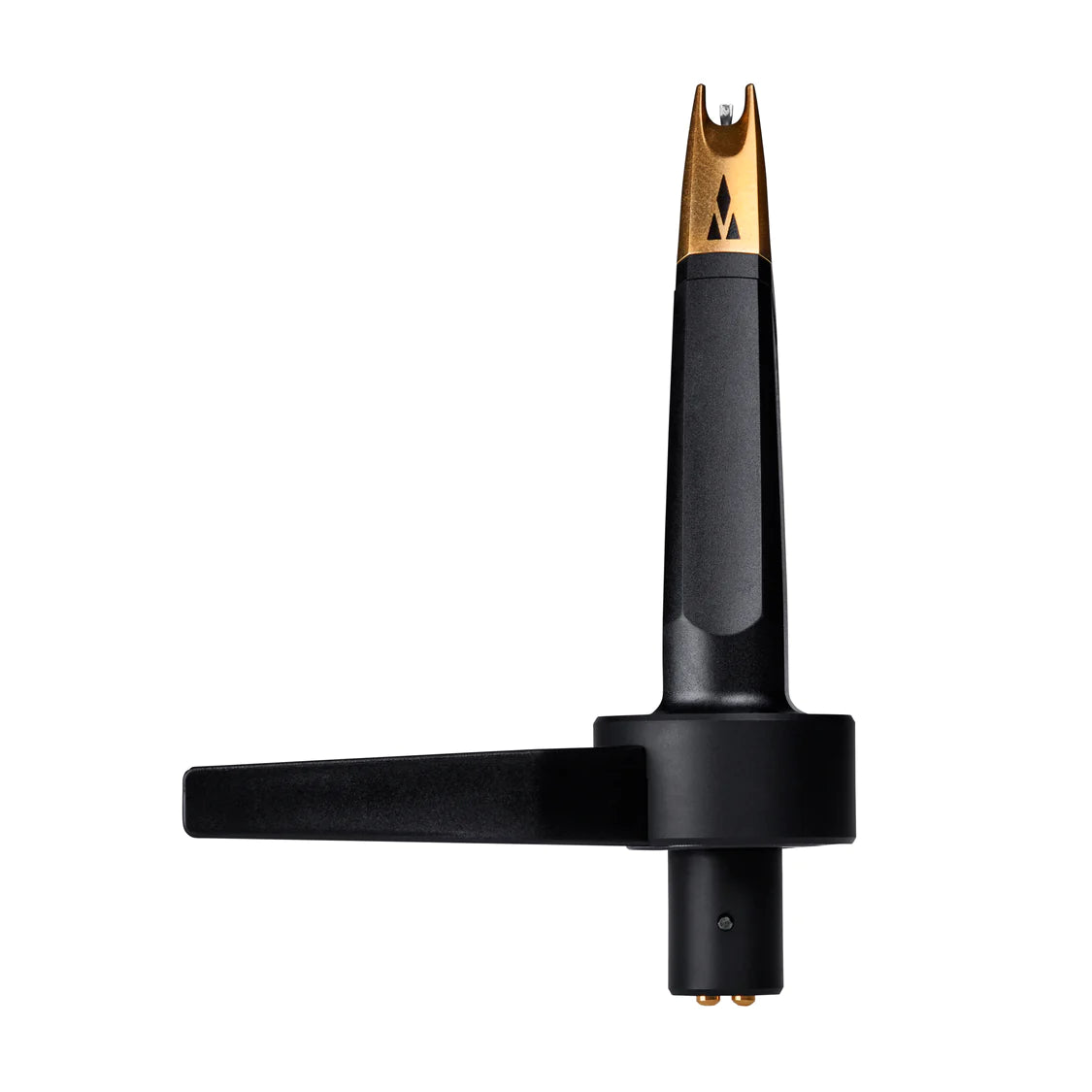

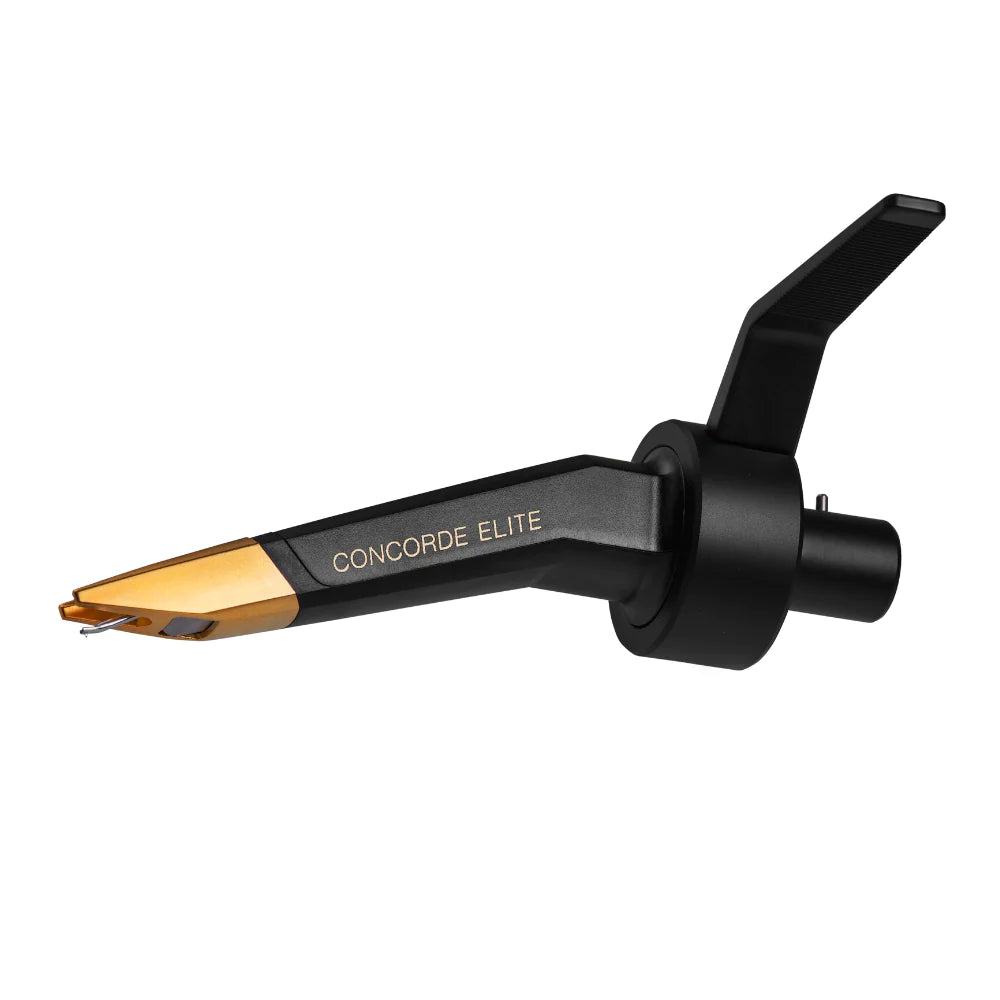

The Concorde Elite is a premium moving magnet cartridge, based on the legacy of the Ortofon Concorde MkII Series. Created with passion, combined with technology and close attention to detail, every feature of the Concorde Elite brings you a limitless experience with the music you love. The ELITE achieves a new level of sound quality, not previously found in the DJ categorized cartridges.

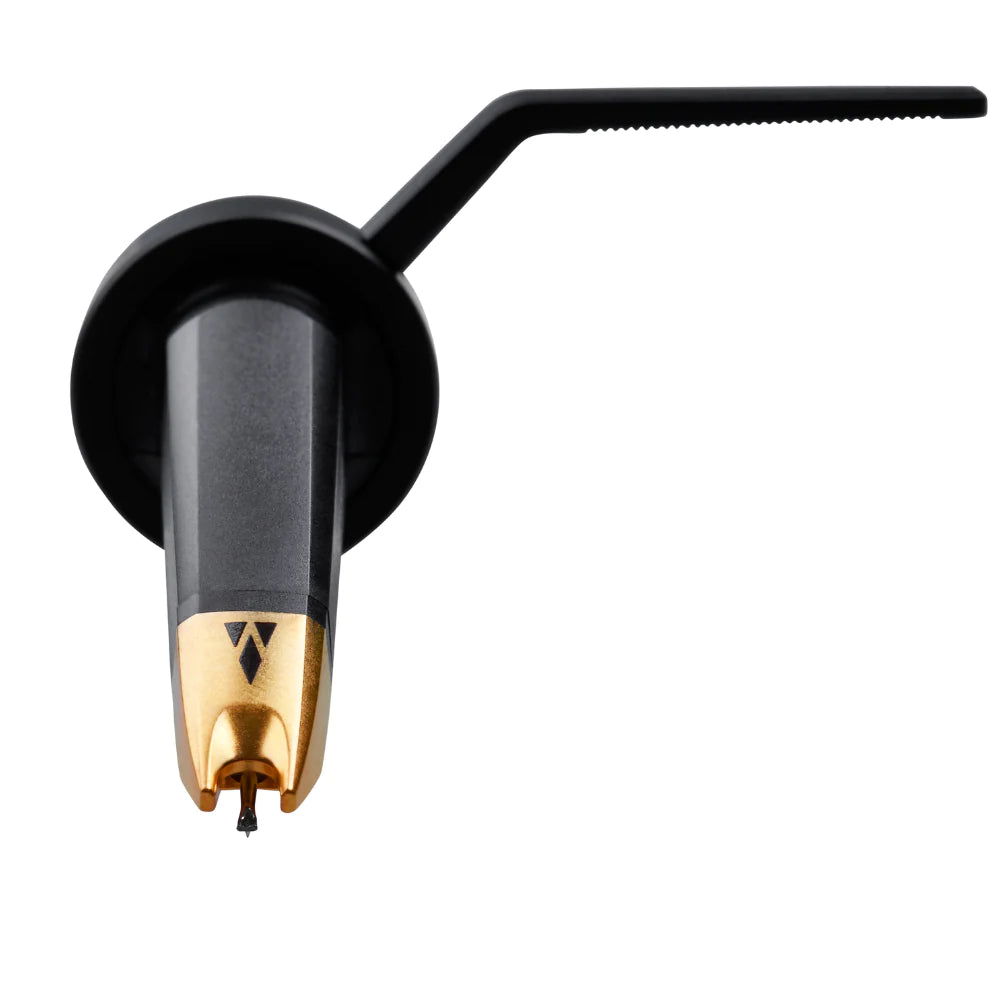

Stylus
High output, great performance
Rubber suspension
Specs
- Channel balance at 1 kHz: 1 dB
- Output voltage at 1 kHz, 5cm/sec: 8,5 mV
- Channel seperation at 1 kHz: 25 dB
- Channel seperation at 15 kHz: 15 dB
- Tracking ability at 315Hz at recommended tracking force: 100 μm
- Compliance, dynamic, lateral: 13 μm/mN
- Stylus tip radius: r/R 8/18 μm
- Tracking force range: 2.0-4.0 g
- Tracking force, recommended: 3.0 g
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.2 kOhm
- Recommended load impedance: 150-400 pF
- Cartridge colour: Black/Gold
- Cartridge weight: 18.5 g
- Recommended load resistance: 47 kOhm
- Internal inductance: 800 mH
