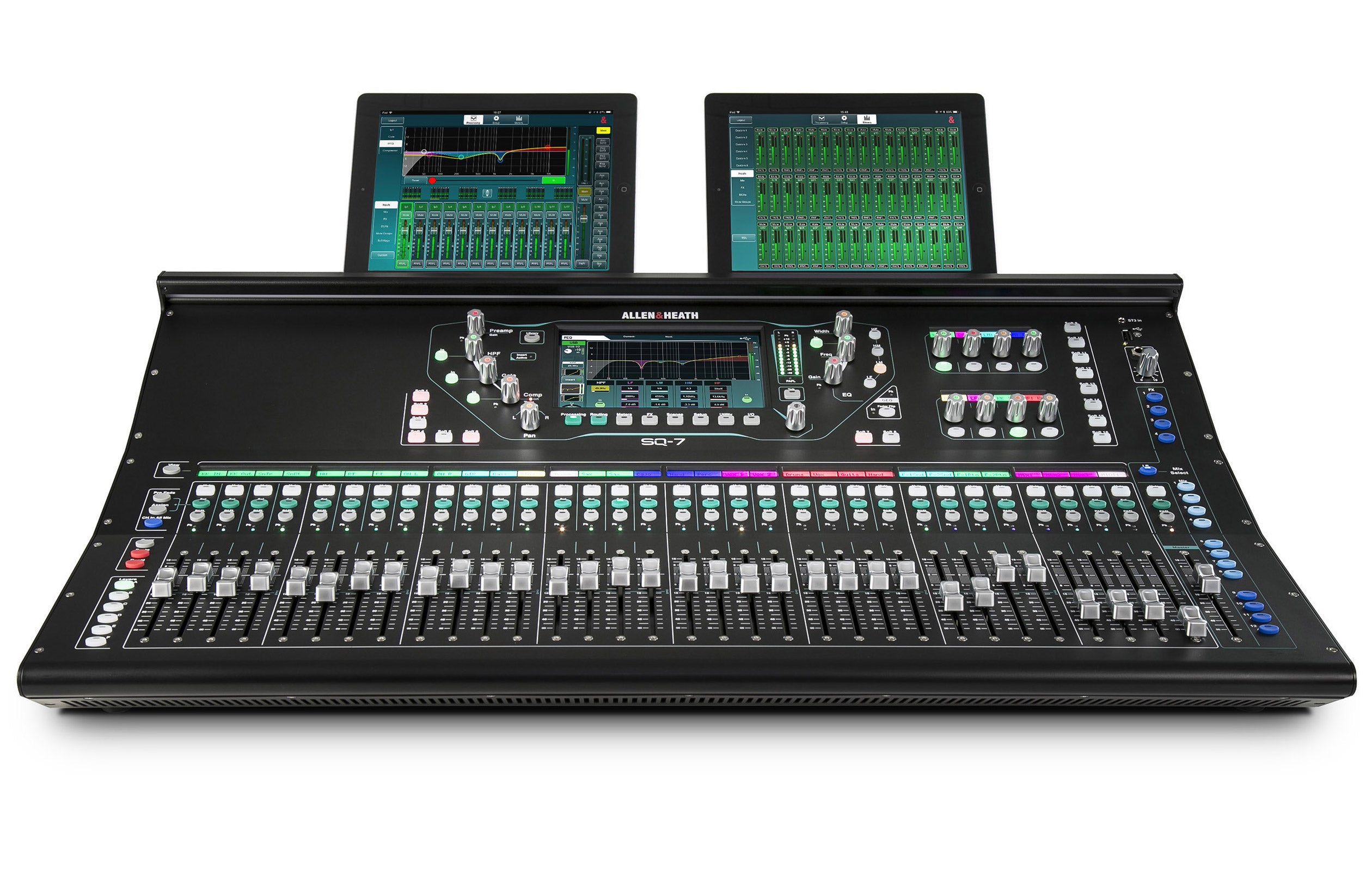

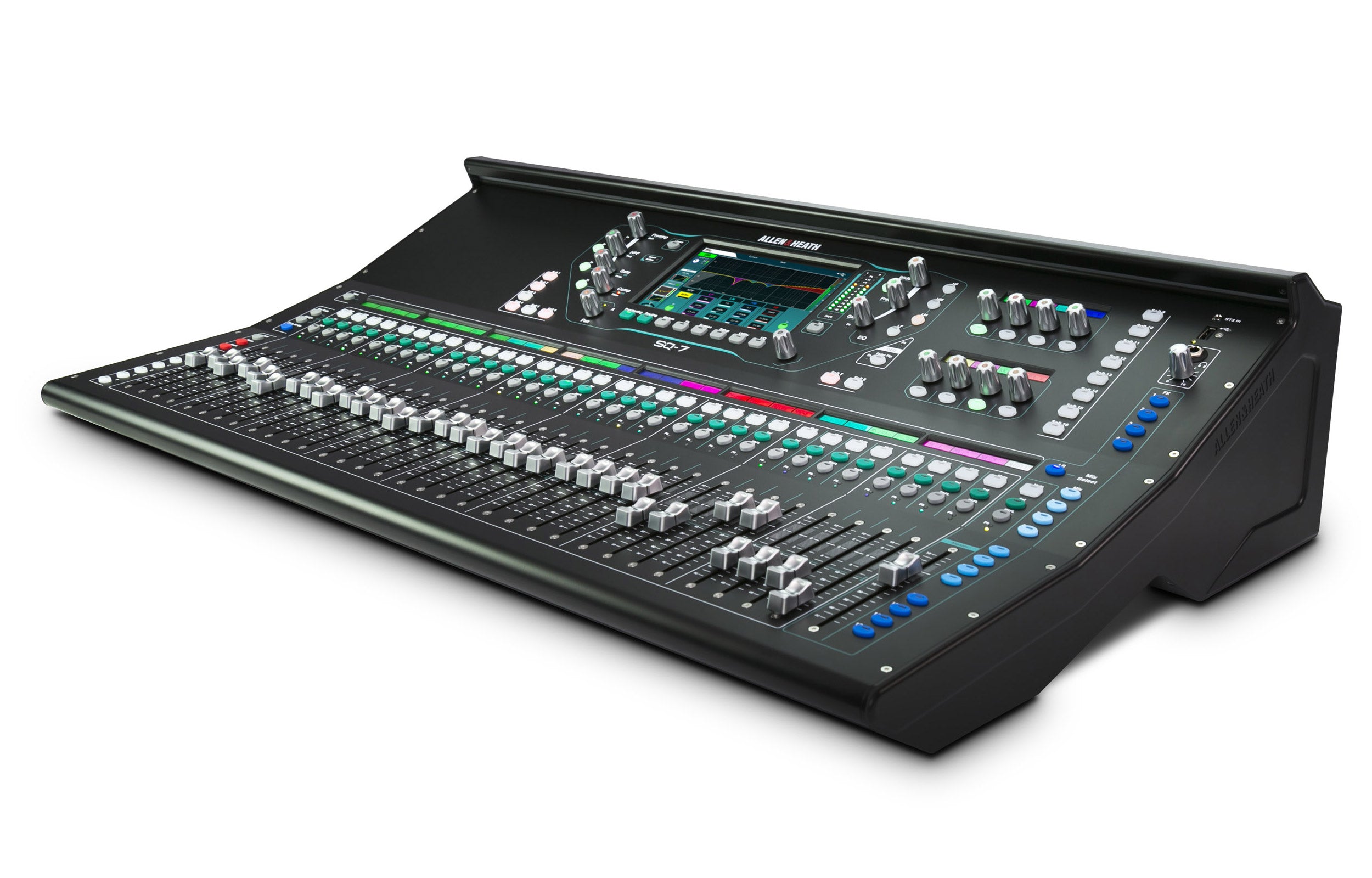

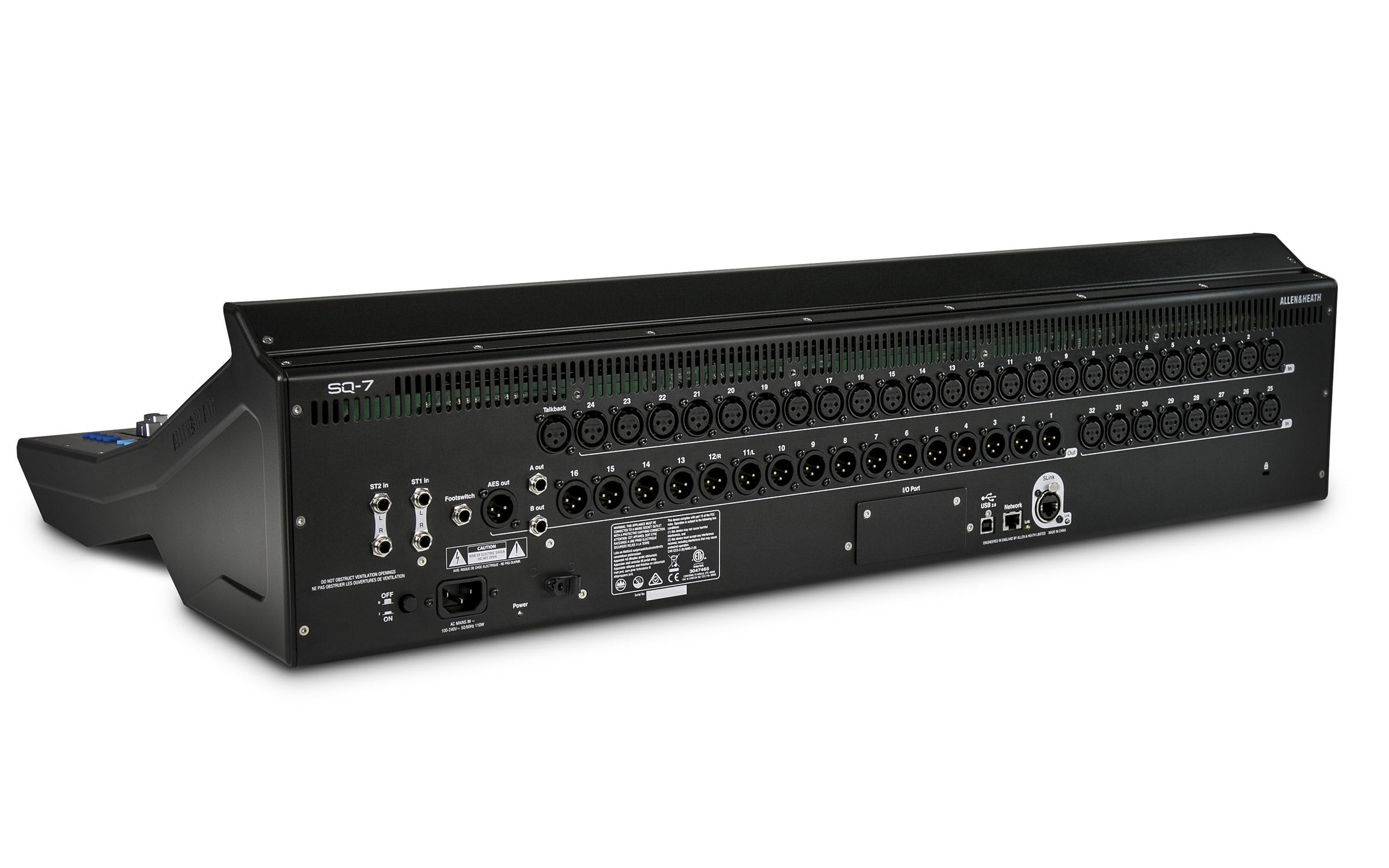

Allen & Heath SQ-7 48 Channel / 36 Bus Digital Mixer

$9,999 $10,990
Finance - $ weekly (12 mths) | Show More

48 channel, 96kHz digital mixers for live sound, AV and installation.

Built on our latest generation 96kHz FPGA XCVI core, SQ sets a new standard for compact digital mixers, delivering pristine, high resolution audio with a class-leading latency of <0.7ms.

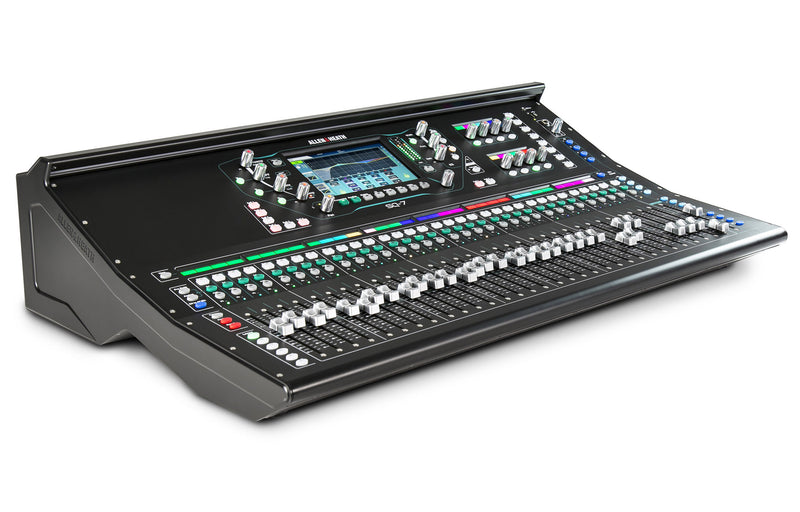

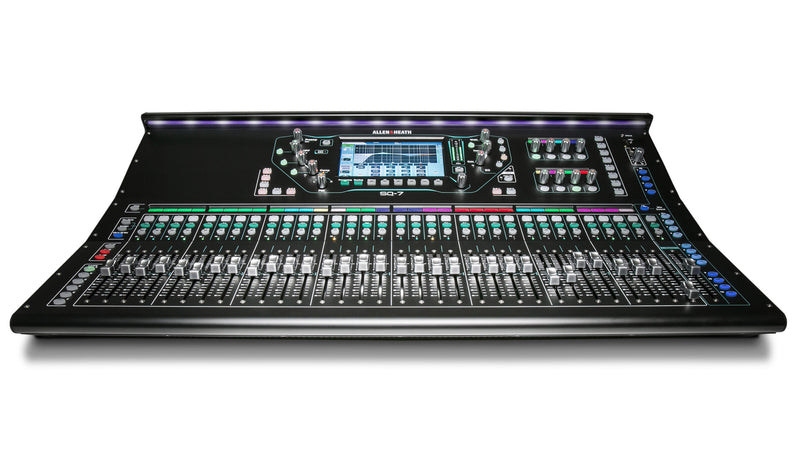

SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.

Powerful Processing

SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.

Add-On Plug-Ins Available

DEEP – Proven on countless world-tours with international artists, the DEEP Processing from our award-winning dLive digital mixing system is now available within your SQ. No 3rd party hardware, no added latency, no hassle – just studio-quality processing on every channel.

RackExtraFX – RackExtra FX Add-Ons expand SQ’s FX Rack with powerful new processors.

Pick the perfect processing suite, tailored to your specific requirements.

RackExtra FX

SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.

Expandable up to 48 mics

SQ-5 has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.

The Mixing Experience

With each new design, the Allen & Heath team strives to get closer to the ultimate mixing experience. SQ’s dashboard is centred around a high-res 7” capacitive touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control. Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the colour strip displays, allowing you to build a mixing environment that mirrors your own workflow. Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.

QS-7 Features

* 96kHz FPGA processing
* 48 Input Channels
DEEP Processing ready
* 33 Faders / 6 Layers
12 Stereo mixes + LR
3 Stereo Matrix
8 Stereo FX Engines + dedicated returns
7” capacitive touchscreen
SLink port for remote audio / expansion
64ch I/O Port for audio networking
32×32 USB audio interface
SQ-Drive direct recording to USBAES output
Chromatic channel metering
Integrated LED illumination
Dedicated physical controls
* 16 Assignable SoftKeys
* 16 Assignable Soft Rotaries
Channel LCD displays
* 19” rack mountable
