Allen & Heath

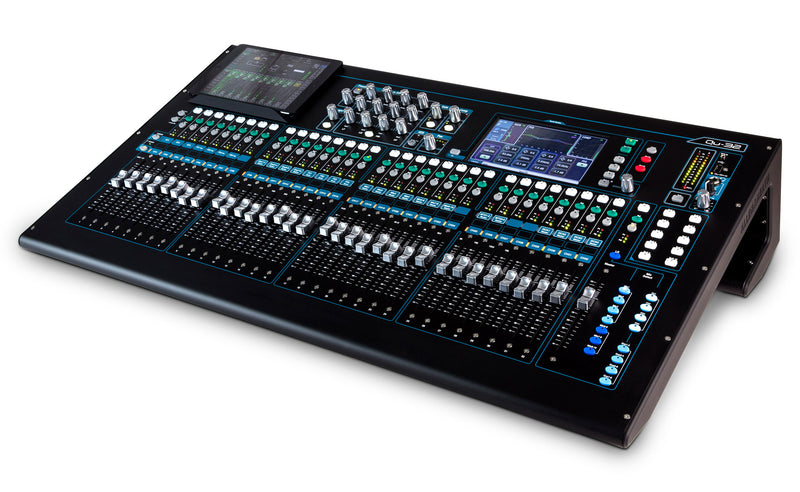

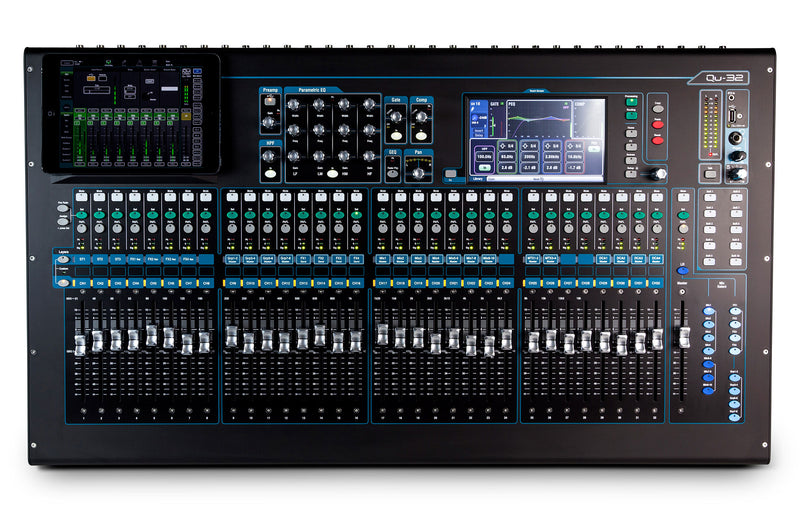

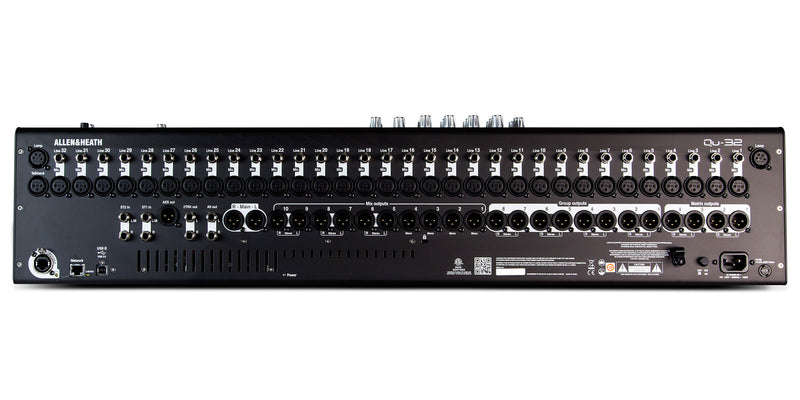

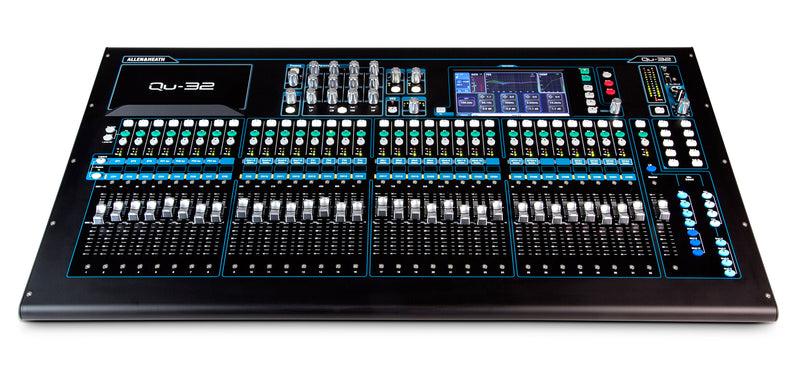

Allen & Heath QU-32 Digital Mixer

$5,899 $6,699
Finance - $ weekly (12 mths) | Show More


Now in a feature-packed new Chrome Edition, the A&H QU-32 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, QU-32 has the power and pedigree to deliver class-leading audio performance. Hot new features include Automatic Mic Mixing and Spectrogram for feedback-hunting, plus upgraded, high contrast metallic finish controls. Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with QU-32.


Qu mixers have been designed by our in-house research and development team in Cornwall, Great Britain, and are directly descended from the GLD and iLive digital mixing systems that have earned the industry’s respect night after night on tour and in live venues across the globe – so you can be confident that you’re standing behind a premium mixer that looks, feels, and sounds like a pro.

Qu harnesses the full potential of digital mixing technology, with total recall of settings (including the all-important fader position and preamp gain), convenient recording and playback solutions, iPad control, personal monitoring options and the choice of local or remote Cat5 I/O.


* 32 Mono Mic/Line Inputs (TRS + XLR)

* Recallable AnaLOGIQTM Preamps

* 3 Stereo Inputs (TRS)

* 24 Mix Outputs (XLR)

* 4 Stereo Groups (switchable to Mix mode)

* Up to 11 Monitor Mixes (4 mono + 7 stereo)

* 2 Stereo Matrix Outs

* 4 FX Engines

* 4 dedicated FX Sends / Returns

* 4 Mute Groups

* 4 DCA Groups

* AES Digital Out

* 32×32 USB Audio Interface

* dSNAKETM Remote Audio Port

* 33 Motor Faders

* 7” Touchscreen

* 10 Soft Keys

* Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs

* Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs

* Channel Ducker on all inputs

* iLive FX Library

* Built-in Signal Generator

* RTA with Peak Band indication

* Spectrogram to aid feedback elimination and room acoustics

* Automatic Mic Mixer

* Qu-Drive Direct Multitrack Recording / Playback on USB drives

* DAW MIDI Control

* Qu-Pad iPad App

* Qu-You iPhone / Android personal monitoring app

* Compatible with ME Personal Mixing System

* High contrast metallic finish controls, matching premium GLD Chrome series
