Ortofon

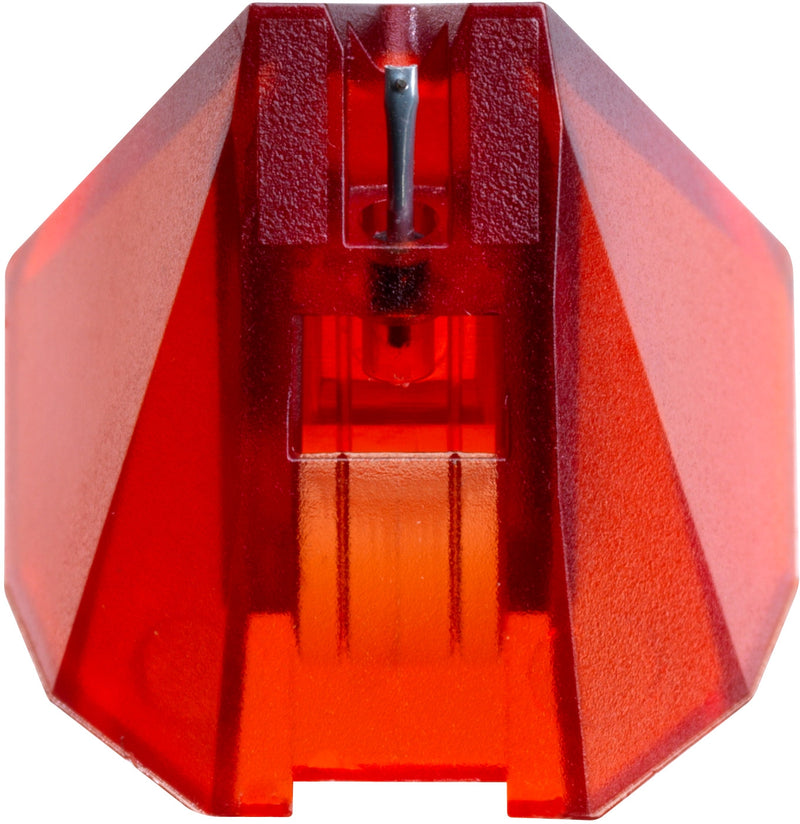

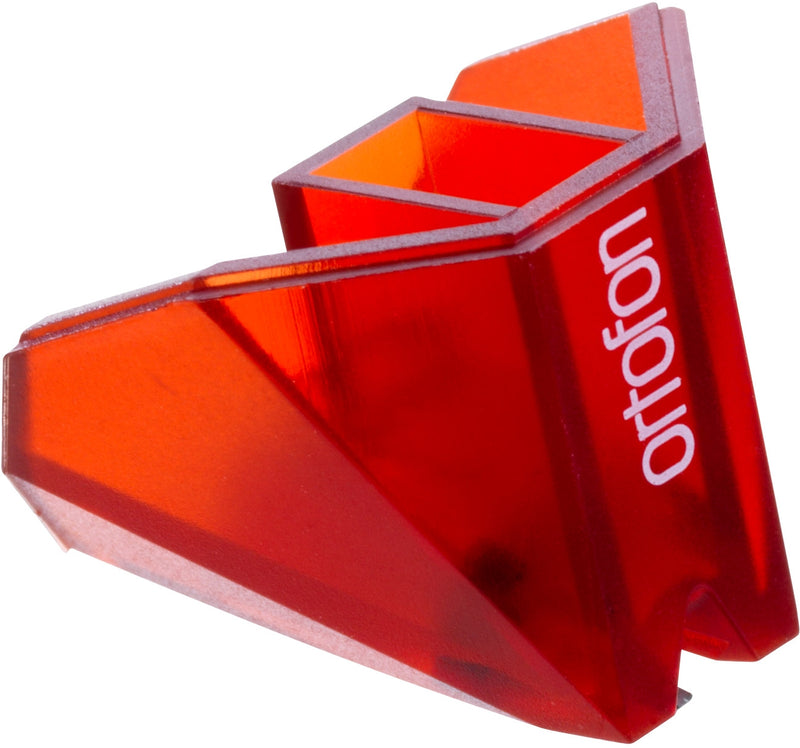

Ortofon 2M RED Replacement Stylus

$159

Official Ortofon replacement stylus for Ortofon 2M-Red Cartridge

Features elliptical stylus tip and provides 5.5mV output when used with matching 2M Red cartridge. This is the correct replacement stylus for the cartridge that is included with the Pro-Ject Debut Carbon DC Esprit SB Turntable.

* this is for the replacement stylus only

* elliptical stylus

* audiophile sound

Technical Specs

  • Frequency range | 20-22,000 Hz
  • Frequency response | 20-20,000 Hz + 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force | 70 µm
  • Compliance, dynamic, lateral | 20 µm/mN
  • Stylus type | Elliptical
  • Stylus tip radius | r/R 8/18 µm
  • Equivalent stylus tip mass | 0.5 mg
  • Tracking force range | 1.6-2.0 g (16-20 mN)
  • Tracking force (recommended) | 1.8 g (18 mN)
  • Tracking angle | 20°
  • Stylus colour | Red
  • Recommended for the following cartridges | 2M Red / 2M Red Verso (interchangeable with 2M Blue / 2M Blue Verso)
