Allen & Heath

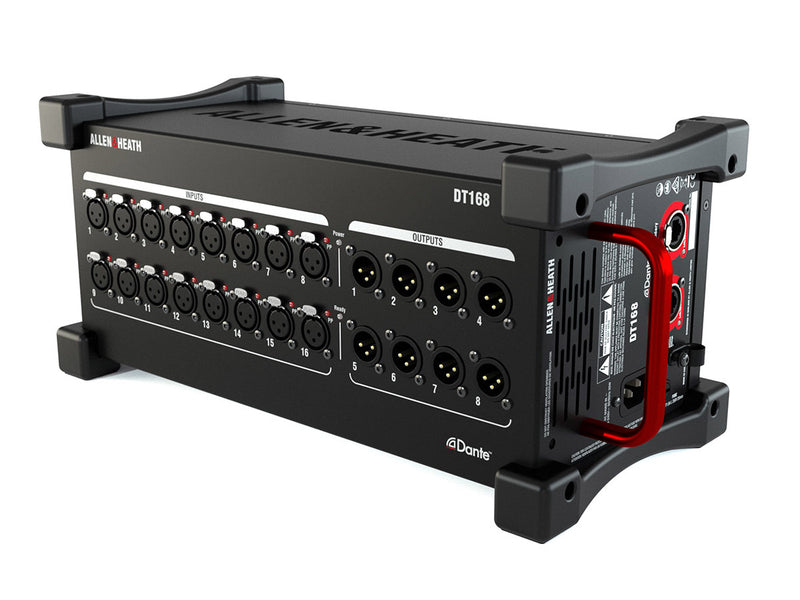

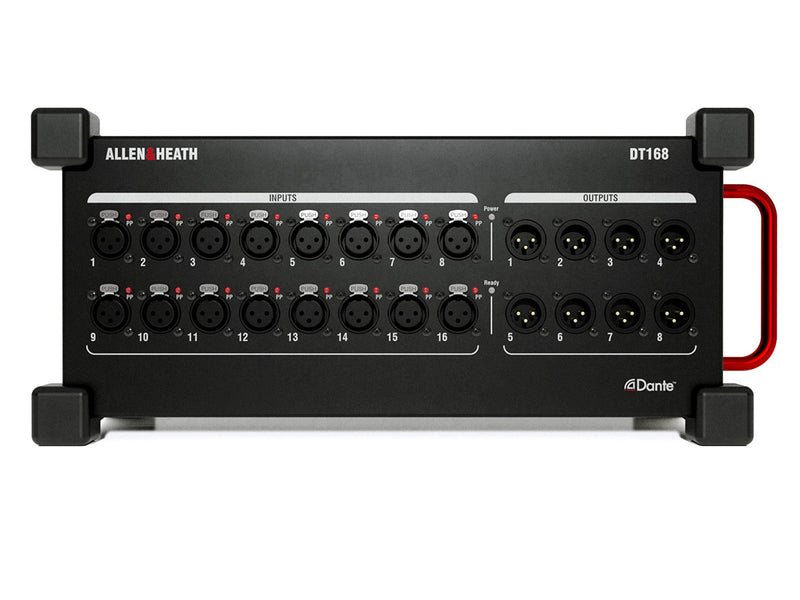

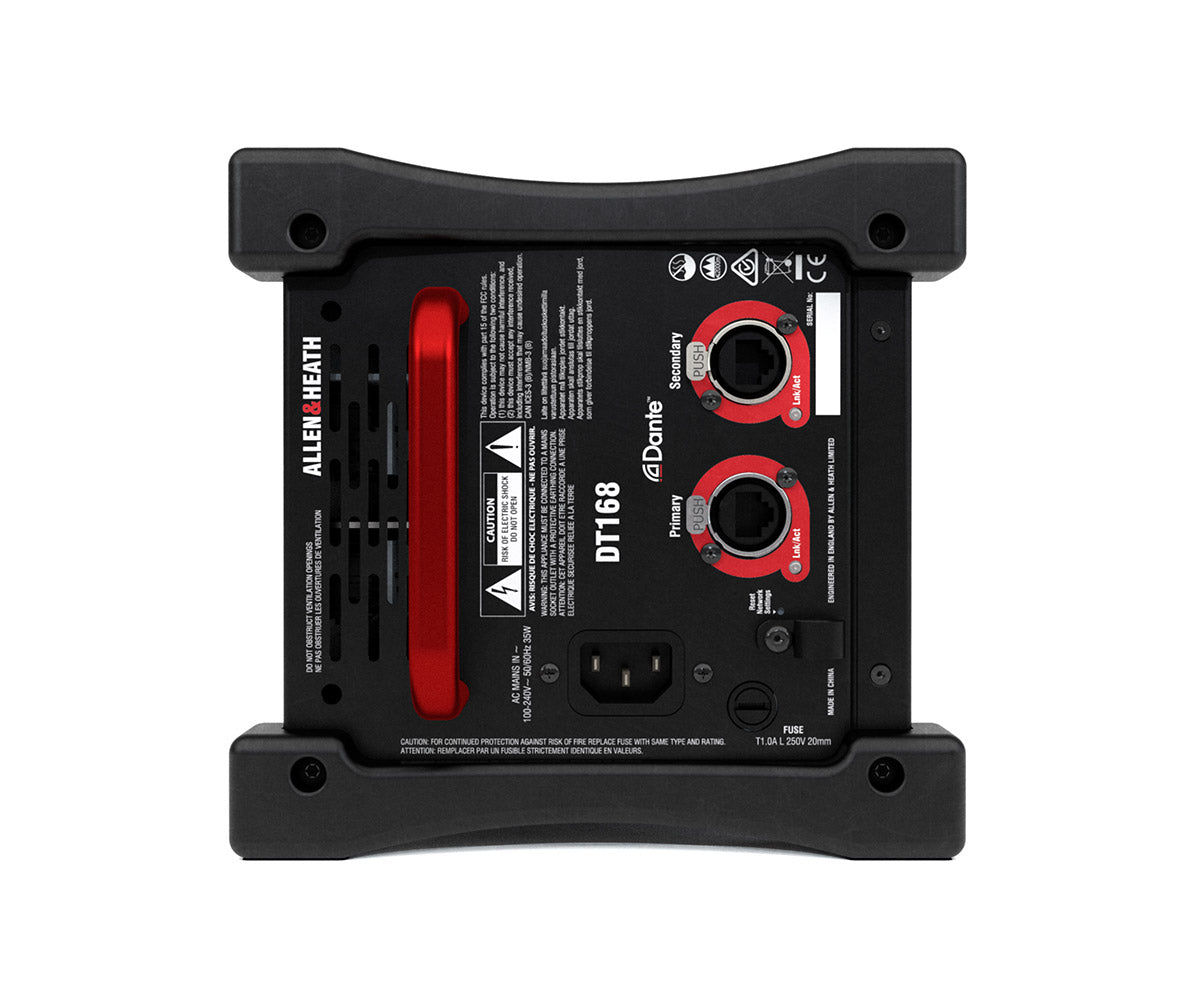

Allen & Heath DT168 Portable 96kHz Dante Expander Module 16 XLR In / 8 XLR Out

$3,699 $3,990
Finance - $ weekly (12 mths) | Show More

16 XLR Input / 8 XLR Output 96kHz Portable Dante Expander for SQ and DLive

The DT168 provides 16 microphone preamps and 8 line outputs in a convenient stagebox form factor. Ideal for portable applications thanks to its rubber bumpers and handle, it can be deployed on stage or used as a drop-in expander in any SQ or dLive Dante network.

DT168 offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.

Up to 16 units can be added to an SQ or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.

Features

  • Dante audio expander, 96kHz / 48kHz
  • Portable stagebox design
  • 16 mic preamps on XLR with Phantom Power status LEDs
  • 8 XLR Line Outs
  • Primary and Secondary Dante ports with locking EtherCon
  • Redundant or Switched mode
  • Direct preamp control from dLive and SQ
  • Optional 19-inch rack mount kit available
  • Rubber bumpers and carry handle
  • AES67 compatible
  • Dante Domain Manager ready
